LM-B/LM-C
| Techinical Data – Dati Tecnici | LM-C | LM-C |
| 180 | 210 | |
| Source type – Sorgente laser | Nd: YAG (flash lamp) | |
| Wavelength – Lunghezza d’onda | 1064 nm | |
| Average laser power – Potenza media laser | 80 W | 85 W |
| Peack power – Potenza di picco | 9 kW | 10,5 kW |
| Energy at max pulse duration – Energia a max durata impulso | 180 J (at 25 ms) | 210 J (at 25 ms) |
| Pulse duration – Durata impulso | 0,3 -25 ms | |
| Pulse frequency – Frequenza impulso | 0 – 50 Hz | |
| Laser spot diameter – Diametro spot laser | 0,2 – 2 mm (0,1 mm optional) | |
| Power supply – Alimentazione | 230 V 50/60 Hz 1ph | |
| Max piece size – Dimensione max pezzo | 300 x 300 x h 270 mm | |
| Max load weight – Carico massimo | 25 kg | |
| X axes stroke – Corsa asse X | 150 mm | |
| Y axes stroke – Corsa asse Y | 150 mm | |
| Z axis stroke – Corsa asse Z | 175 mm | |
| Machine dimensions – Dimensioni macchina | LM-B: 698 x 801 x h 1465* mm | |
| LM-C: 1136 x 801 x h 1465* mm | ||
| Machine weight – Peso macchina | 200 kg | |

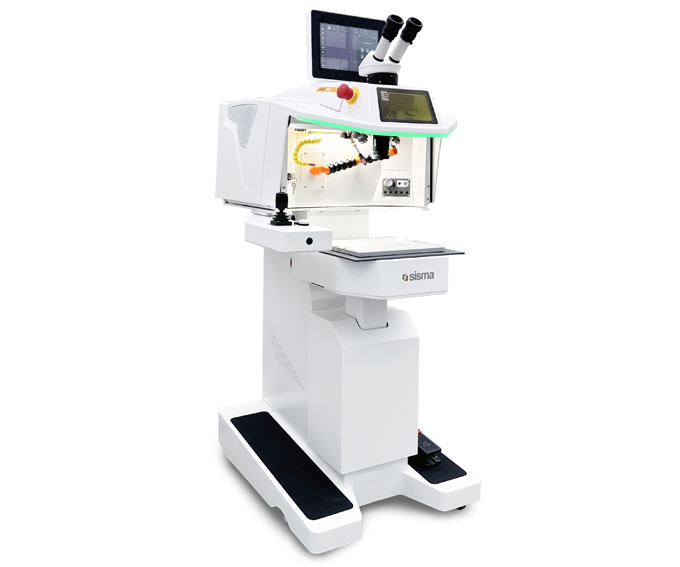

AUTOMATIC AND SEMIAUTOMATIC LASER WELDING SYSTEM
LM-B and LM-C are semi-automatic and automatic laser systems for welding small objects, for example in the medical or jewelry sectors (LM-C), and for repairing molds.
Comfortable and silent, they are equipped with Nd: YA (Flash lamp) lasers that offer a wide depth of field and stable firing from the very first pulses, for consistent welding quality (Smart Spot technology).
This machine is suitable for: Jewelry and Industry
STURDINESS
Robust structure ensures process stability.
EASY OF USE
Also suitable for non-experts.
VERSATILITY
For different types of parts, processes, or workable materials.
FAST AND PRECISE
The 3 motorized axes with spindle (optional) ensure precision, rapid execution and repeatability. The operator has maximum freedom of action in alternating between automatic and manual operations.
The software that manages processing parameters, developed by Sisma, enables welding along linear and/or circular paths, recipe management, and optimization of welding performance by modulating laser power in the initial and final stages of the process.
It is possible to rotate the top of the machine for easy loading of parts.
Medical applications
LM-B with spindle it’s an ideal solution for welding of tubes for endoscopy, arthoscopy and complex surgical instruments.
Jewelry applications
Thanks to the Smart Spot system for stable laser welding right from the first pulses, LM-C is ideal for complex processes where uncompromising aesthetic quality of the weld seam is required.
