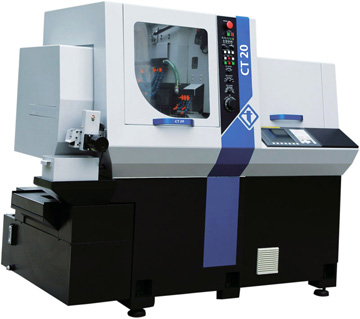

Swiss Type Turning Center
CT 20
| Main spindle | |
| Max bar diameter | 20mm |
| Spindle speed | 8000rpm |
| Spindle drive power | 2,2kw |
| Max number of turning tools | 6 |
| Turning tool section | 12x12 |
| Max drilling diameter | Ø 10mm (ER 16) |
| Max tapping diameter | M8 (ER16) |
| Max radial drilling diameter | Ø7 |
| Max. number of front tools | 5 |
| Cross-rotating tools | 4 max. |
| Cross-rotating tool speed | 8000rpm |
| Cross drive power | 1kw |
| Counterspindle | |
| Max bar diameter | 20mm |
| Max parts length | 80mm |
| Ejector stroke | 80mm |
| Spindle speed | 8000rpm |
| Spindle drive power | 1,5kw |
| C-axis | yes |
Powerful, robust bar turning machine.
Main advantages:
- Highly rigid and stable cast iron frame
- Modular tooling system
- Powerful spindles and drives
- Quick, easy configuration
- Intuitive
- ISO programming
