CSP PICO
| DATI TECNICI | CSP Pico | CSP Pico Burst | CSP Pico Plus | CSP Pico Burst Plus |
| Laser souce | Yb – 50 W – 1030 nm | Yb – 50 W – 1030 nm | Yb – 50 W – 1030 nm | Yb – 50 W – 1030 nm |
| Working frequency | 50 ÷ 2000 kHz | 200 ÷ 2000 kHz | 50 ÷ 2000 kHz | 200 ÷ 2000 kHz |
| Pulse duration | 1 ÷ 3 ps | 1 ÷ 3 ps | 1 ÷ 3 ps | 1 ÷ 3 ps |
| Peak power | 10000 kW | 10000 kW | 10000 kW | 10000 kW |
| Pulse energy | 0,025 mJ | 0,025 mJ | 0,025 mJ | 0,025 mJ |
| Beam quality | < 1,4 | < 1,4 | < 1,4 | < 1,4 |
| Galvo head | Digital, air-cooled | Digital, air-cooled | Digital, water-cooled | Digital, water-cooled |
| Cooling system | Integrated chiller | Integrated chiller | Integrated chiller | Integrated chiller |
| Max. work area | 180 x 180 mm (focal 254 mm) | 180 x 180 mm (focal 254 mm) | 180 x 180 mm (focal 254 mm) | 180 x 180 mm (focal 254 mm) |
| Power supply | 230 V~ 50/60 Hz – CEE 16A socket | 230 V~ 50/60 Hz – CEE 16A socket | 230 V~ 50/60 Hz – CEE 16A socket | 230 V~ 50/60 Hz – CEE 16A socket |
| Power absorption | Max. 1 kW | Max. 1 kW | Max. 1 kW | Max. 1 kW |
| Dimensions (L x D X H) | 700 mm x 1300 mm x h 1700 mm (2200 with open door) | 700 mm x 1300 mm x h 1700 mm (2200 with open door) | 700 mm x 1300 mm x h 1700 mm (2200 with open door) | 700 mm x 1300 mm x h 1700 mm (2200 with open door) |
| Weight | 420 kg | 420 kg | 420 kg | 420 kg |
COMPACT MARKING AND ENGRAVING SYSTEM WITH ULTRASHORT FIBER LASER SOURCE

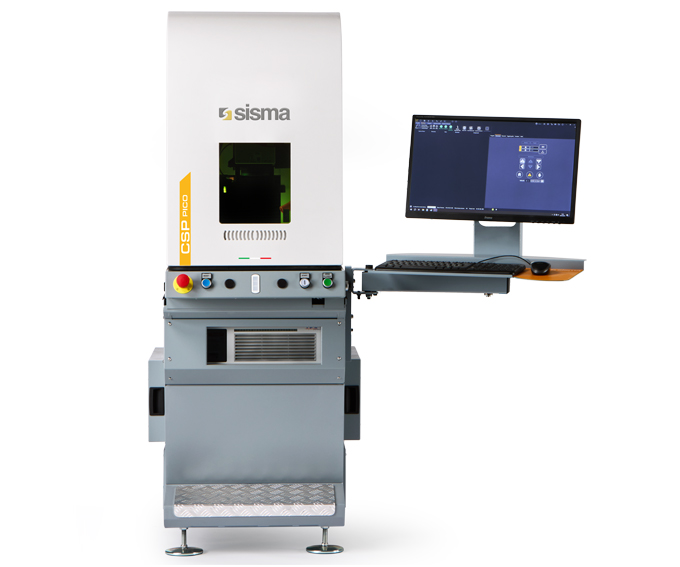

CSP PICO is a laser marking and engraving system that combines the qualities of an ultrashort pulse fibre laser in a very compact machine. At only 70 cm wide, CSP PICO can pass through standard-width doors and fit into lifts with adequate capacity, making it easy to transport and install in small workshops. The 50 W Pico fibre laser does not cause significant thermal alterations or deformation of the material being processed. The results are highly accurate and are able to meet the most demanding applications in sectors such as jewellery, watchmaking and medical devices. Marking, engraving and aesthetic processing are performed on finished pieces, so no further cleaning or polishing is required.
This machine is suitable for: Jewelry and Industry
COMPACTNESS
Small-sized machine, for small space.
PRECISION AND REPEATABILITY
Highest quality standards for the most demanding applications.
BURST OPTION
High-performing marking and engraving on steel and titanium.
MAIN BENEFITS OF PICO BURST LASER SOURCE
In BURST mode, the PICO laser offers its best performance on stainless steel and titanium. Engravings are achieved with exceptionally clean surfaces and extremely high detail quality. For deep engravings, significant time savings are achieved due to its efficiency in removing material.
3D Scan Pack: the evolution of laser marking on irregular or complex surfaces
3D Scan Pack, Sisma’s patented hardware and software solution, enables the recognition, automatic reconstruction and laser processing of rings, bracelets and any other oval or circular object. The main advantage lies in the possibility of machining parts with an unknown 3D model or that do not follow the theoretical design.
Mass production with Pattern Matching
Pattern Matching (PM) is an additional software functionality to CVS that allows automatic recognition of workpieces on the worktable and consequently precise and repeatable positioning and execution of machining operations (marking, engraving, cutting, etc.).
