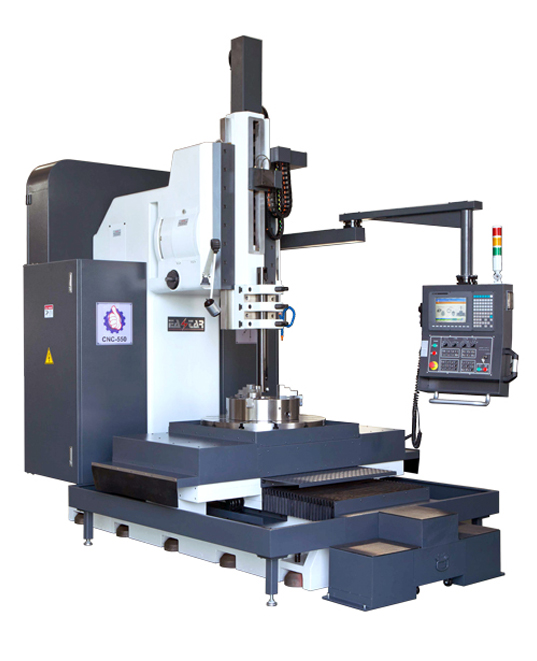

CNC-550 Automatic CNC Slotting Machine

CNC and Manual Slotting Machines

CNC-550 Automatic CNC Slotting Machine

Max. travel of the ram (stroke) 550mm
Table Diameter 850mm
Max table load 2000kg
Bore of work table Φ250mm
Distance between ram guide way & worktable (A)  875mm
Distance between tooling center & column (B) 650mm
Dimension of working table Ø850mm



- The main machine structure is made of high quality cast iron, X,Y axis and Ram guideway are hardened and ground.
- All the slideways,main Ram guideway,and X,Y,Z axis ballscrews are complete with automatic lubrication system to ensure the machine running smoothly and long life.
- The machine is equipped with hydraulic clamping system to lock the connection block between linking Rod and Ram.
- The swivel head can rotate right and left smoothly via worm & worm gear for taper keyway slotting purpose.
- The X,Y,Z axis are complete with high precision C3 class double nut ballscrews and precision bearings specially for precision ballscrew to ensure position accuracy.
- The C axis rotary working table is driven by 4.4kw AC servo motor with high torque coupling to directly drive "Dual lead worm shaft" and "high class bronze alloy worm gear set" to ensure the high indexing accuracy.
