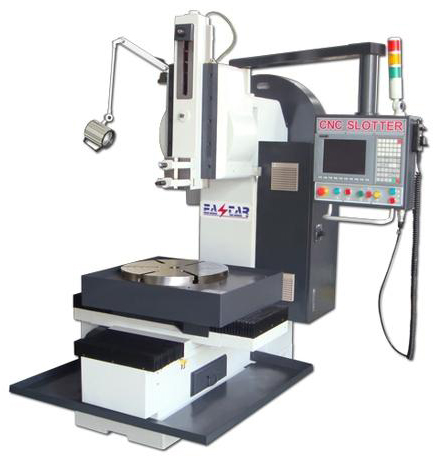

CNC-350 Automatic CNC Slotting Machine
| Max. travel of the ram (stroke) | 350mm |
| No. of strokes per minute (60HZ) spm | L: 22-26-31-39 H: 44-52-61-78 |
| No. of strokes per minute (50HZ) spm | L: 22-26-31-39 H: 44-52-61-78 |
| Vertical adjustment of ram | 320 |
| Swivel angle of head | ±30° |
| Distance between ram guide way & worktable (A) | 470mm |
| Distance between tooling center & column (B) | 560mm |
| Dimension of working table | Ø560mm |
| Longitudinal travel of working table | 432mm |
| Cross travel of working table (Y) | 432mm |
| Main spindle motor (2 speeds motor) | 5HP 4P/8P |
| Net weight | 1800/1900kg |
- X, Y Axis & Ram Slide Way hardened and precision ground.
- Head can swivel ±30° for slotting taper keyway.
- Uses AC-servo motor with high precision C3 ball screw for feeding purpose, best cutting accuracy and long life.
- Program include auto tool relief function for best slotting surface and prolong tool's life.
- Built in automatic lubrication system to prevent wear.
