Laser Engraving

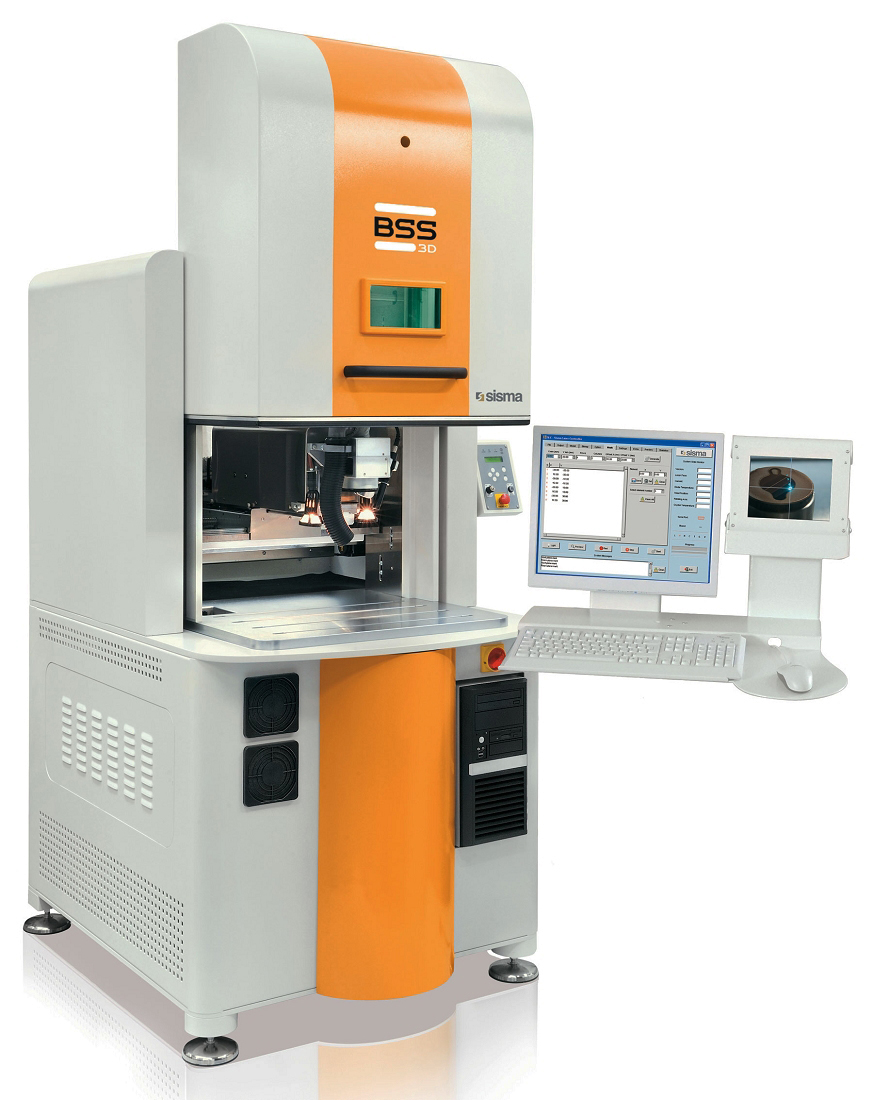

BSS 3D (Deep Laser Engraving)
| BSS 200F 3D | |
| Wave length | 1064nm |
| Focals | F100, F163, F254, F420mm |
| Working area | 600x800x450mm |
| Repeatibility | +/- 0,02mm |
| Camera | CCD 768(h)x494(V)lines |
| Cooling system | water |
| Power supply | 230V +/- 15% 50/60Hz 1ph |
| BSS 400F 3D | |
| Wave length | Nd:YAG - 1064 nm |
| Average power | 40W |
| Peak power | 12kw |
| Pulse frequency | 1-200 kHz |
| Working area with focal F160 | 100x100mm |
| Laser spot diameter | 25µm |
| Feeding voltage | 230V 50/60Hz monofase |
The Sisma Laser System specific for 2D and 3D deep engraving on moulds, punches and electrodes through movement of the laser source on a portal with 3 axes with a range of 350 mm. The centering is done through an high resolution ultra compact camera; working cycles, positioning and programming are managed from the master software.
- Control: Windows PC with PCI board, RS232 Software SISMA Laser Controller
- Interface: PLC, data network (ethernet), digitals I/O
- Software: SLC software for files management marking parameters defining. Accepted extensions SVG, BMP, JPG, HTML, PLT; control system for axis and camera for abject centering, positioning and programming engraving cycles. Entirely developed in SISMA.
- Options: Rotary axis, dragging system with winder, dynamic measuring device, fumes aspirator, static clamping vice.
