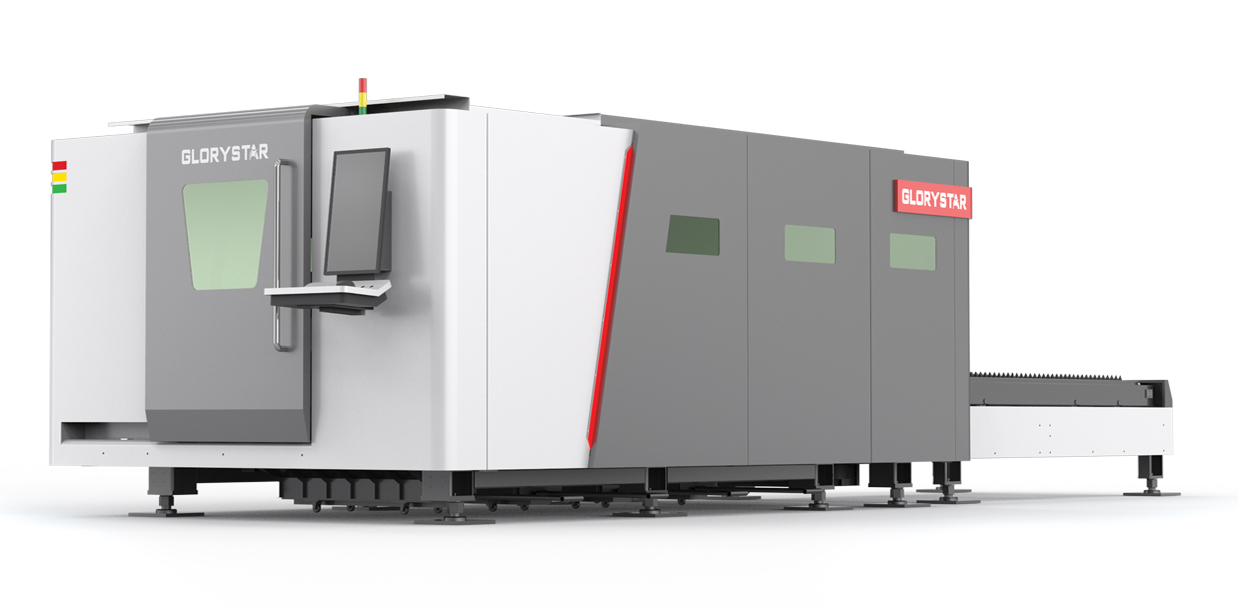

CNC Laser Cutting
VS-CE Series
| VS-3015CE | VS-4015CE | VS-4020CE | VS-6015CE | VS-6020CE | VS-6025CE | |
|---|---|---|---|---|---|---|
| Max. material width (mm) | 3000×1500 5×10ft | 4000×2000 13×7ft | 6000×2000 17×7ft | 6000×2500 17×8.2ft | 8000×2500 26×8.2ft | 12000×2500 40×8.2ft |
| X axis travel (mm) | 1550 / 5.1ft | 1520 / 5ft | 2020 / 7ft | 1520 / 5ft | 2020 / 7ft | 2520 / 8.2ft |
| Y axis travel (mm) | 3030 / 10ft | 4030 / 13ft | 4030 / 13ft | 6030 / 20ft | 6030 / 20ft | 6030 / 20ft |
| Z axis travel (mm) | 290 / 1ft | 290 / 1ft | 290 / 1ft | 290 / 1ft | 290 / 1ft | 290 / 1ft |
| X/Y positioning accuracy | ≤0.05mm/m / 0.00197in/39.4in | ≤0.05mm/m / 0.00197in/39.4in | ≤0.05mm/m / 0.00197in/39.4in | ≤0.05mm/m / 0.00197in/39.4in | ≤0.05mm/m / 0.00197in/39.4in | ≤0.05mm/m / 0.00197in/39.4in |
| X/Y repeat positioning accuracy | ≤±0.03mm / 0.00118in | ≤±0.03mm / 0.00118in | ≤±0.03mm / 0.00118in | ≤±0.03mm / 0.00118in | ≤±0.03mm / 0.00118in | ≤±0.03mm / 0.00118in |
| Max. synthetic positioning speed | 150m/min / 492ft/min | 150m/min / 492ft/min | 150m/min / 492ft/min | 150m/min / 492ft/min | 150m/min / 492ft/min | 150m/min / 492ft/min |
| Max. acceleration | 2G | 2G | 2G | 2G | 2G | 2.8G |
| Slit width | 0.1mm-0.5mm / 0.0039in-0.0197in | 0.1mm-0.5mm / 0.0039in-0.0197in | 0.1mm-0.5mm / 0.0039in-0.0197in | 0.1mm-0.5mm / 0.0039in-0.0197in | 0.1mm-0.5mm / 0.0039in-0.0197in | 0.1mm-0.5mm / 0.0039in-0.0197in |
| Incision roughness | Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in | Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in | Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in | Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in | Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in | Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in |
| Max. cutting thickness range | Refer to the following process parameter table | Refer to the following process parameter table | Refer to the following process parameter table | Refer to the following process parameter table | Refer to the following process parameter table | Refer to the following process parameter table |
| Min. setting unit | 0.001mm / 0.00003937in | 0.001mm / 0.00003937in | 0.001mm / 0.00003937in | 0.001mm / 0.00003937in | 0.001mm / 0.00003937in | 0.001mm / 0.00003937in |
| Floor area of machine tools (mm) | 9800×4500 32×15ft | 12000×4500 40×15ft | 12000×5000 40×16ft | 16150×4500 53×15ft | 16150×5000 53×16ft | 16150×5000 53×16ft |
| Host volume (mm) | 8850×2770×2050 29×9×7ft | 10750×2770×2050 35×9×7ft | 10750×3310×2050 35×11×7ft | 15200×2720×2050 50×9×7ft | 15200×3310×2050 50×11×7ft | 15200×3810×2050 50×12×7ft |
| CNC system | CYPCUT (optional Glorystar system) | CYPCUT (optional Glorystar system) | CYPCUT (optional Glorystar system) | CYPCUT (optional Glorystar system) | CYPCUT (optional Glorystar system) | CYPCUT (optional Glorystar system) |
| Monitor | 27" LCD | 27" LCD | 27" LCD | 27" LCD | 27" LCD | 27" LCD |
| Transfer method | Rack and pinion dual drive | Rack and pinion dual drive | Rack and pinion dual drive | Rack and pinion dual drive | Rack and pinion dual drive | Rack and pinion dual drive |
| Max. load-bearing capacity of worktable (tons) | 2.2 / 4850lbs | 2.8 / 6173lbs | 3.8 / 8378lbs | 4.3 / 9480lbs | 5.7 / 12567lbs | 7.1 / 15653lbs |
| Total installed power consumption | 1500W 20KVA | 1500W 20KVA | 1500W 20KVA | 1500W 20KVA | 1500W 20KVA | 1500W 20KVA |
| Total installed power consumption | 3000W 27KVA | 3000W 27KVA | 3000W 27KVA | 3000W 27KVA | 3000W 27KVA | 3000W 27KVA |
| Total installed power consumption | 6000W 42KVA | 6000W 42KVA | 6000W 42KVA | 6000W 42KVA | 6000W 42KVA | 6000W 42KVA |
| Total installed power consumption | 12000W 100KVA | 12000W 100KVA | 12000W 100KVA | 12000W 100KVA | 12000W 100KVA | 12000W 100KVA |
| Power requirements | AC380V , 50Hz ; 3P+N+PE | AC380V , 50Hz ; 3P+N+PE | AC380V , 50Hz ; 3P+N+PE | AC380V , 50Hz ; 3P+N+PE | AC380V , 50Hz ; 3P+N+PE | AC380V , 50Hz ; 3P+N+PE |
| Total power protection level | IP54 | IP54 | IP54 | IP54 | IP54 | IP54 |
Enclosed
Exchange Table
Laser Power 1.5-40kW
Size 3x1.5m, 4x2m, 6x2m, 6x2.5m
Size 3x1.5m, 4x2m, 6x2m, 6x2.5m
- Industry-exclusive collision detection system ensures safe and reliable production.
- Streamline all-in-one design with minimal space requirements for flexible installation.
- Laser source and electrical cabinet come standard with industrial-grade air conditioning.
- Streamline all-in-one design with minimal space requirements for flexible installation.
- Laser source and electrical cabinet come standard with industrial-grade air conditioning.
