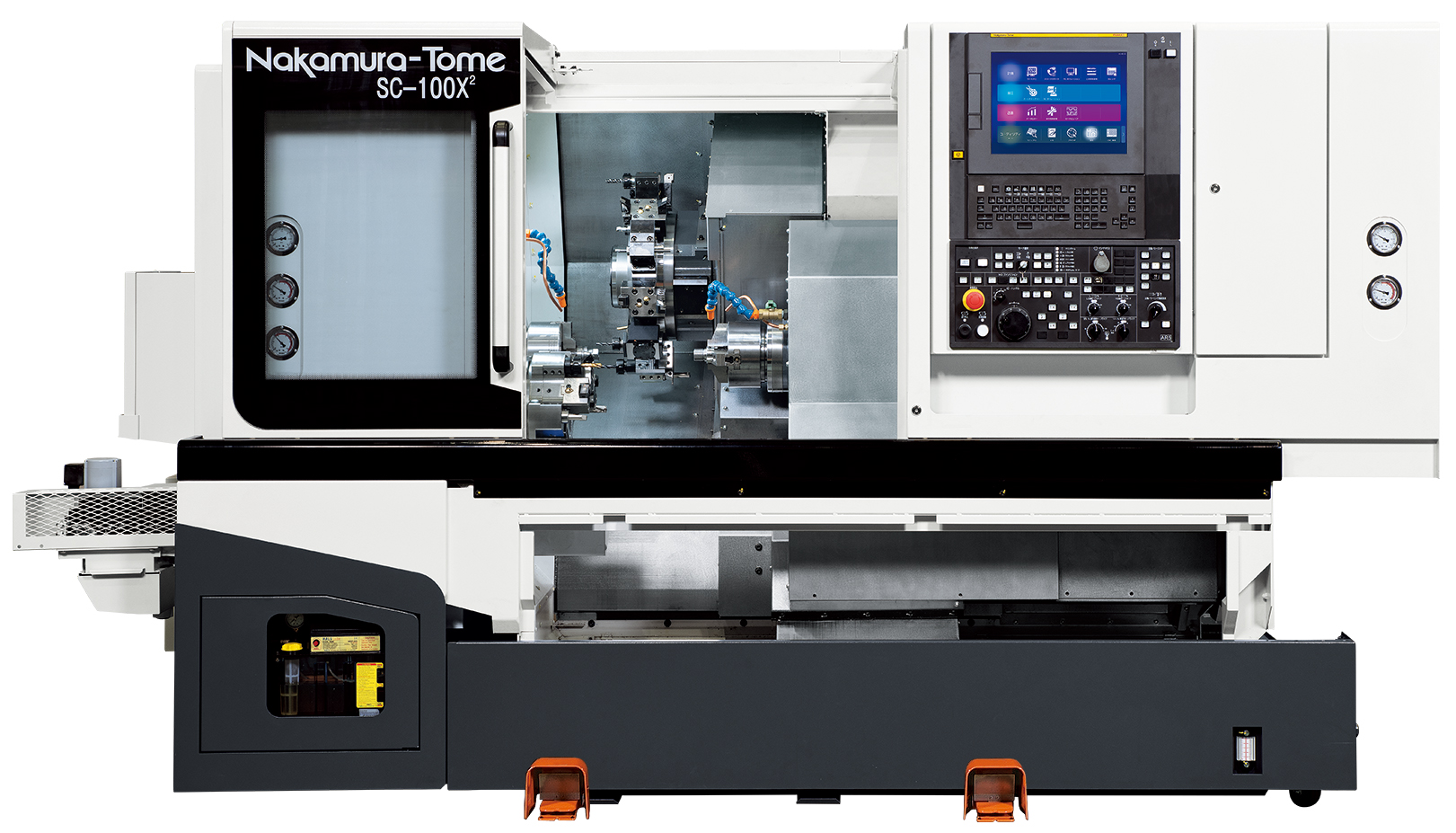

Multi Tasking Turning Center

SC-100X2
Model φ51mm
Max. Turning Diameter 195mm
Max. Turning Length 400mm
Distance Between Spindles max. 600mm/min. 200mm
L/R Bar Capacity 51mm/42mm
L/R Chuck Size 6″/5″(6″)
L/R Spindle Speed 6,000min-1/6,000min-1
L/R Spindle Drive Motor 11/7.5kW / 7.5/5.5kW
X Slide travel on R-spindle 150mm
Z Slide travel on R-spindle 400mm

Born to be Fast

SC-100X2 is 41% faster than SC-100.
X-axis and Z-axis are standard on R-spindle.
Superimposed cycle is simultaneous machining through overlapping control between L-spindle and R-spindle.
Milling and Y-axis are Standard

Y-axis Stroke 80mm (±40mm)
11/7.5 kW L-spindle motor.
7.5/5.5 kW R-spindle motor.
7.1/2.2kW Milling motor / Max. speed 6,000min-1.
Turret Hand Unloading Gripper on Lower Turret.









SC-100X² | Born to be fast
