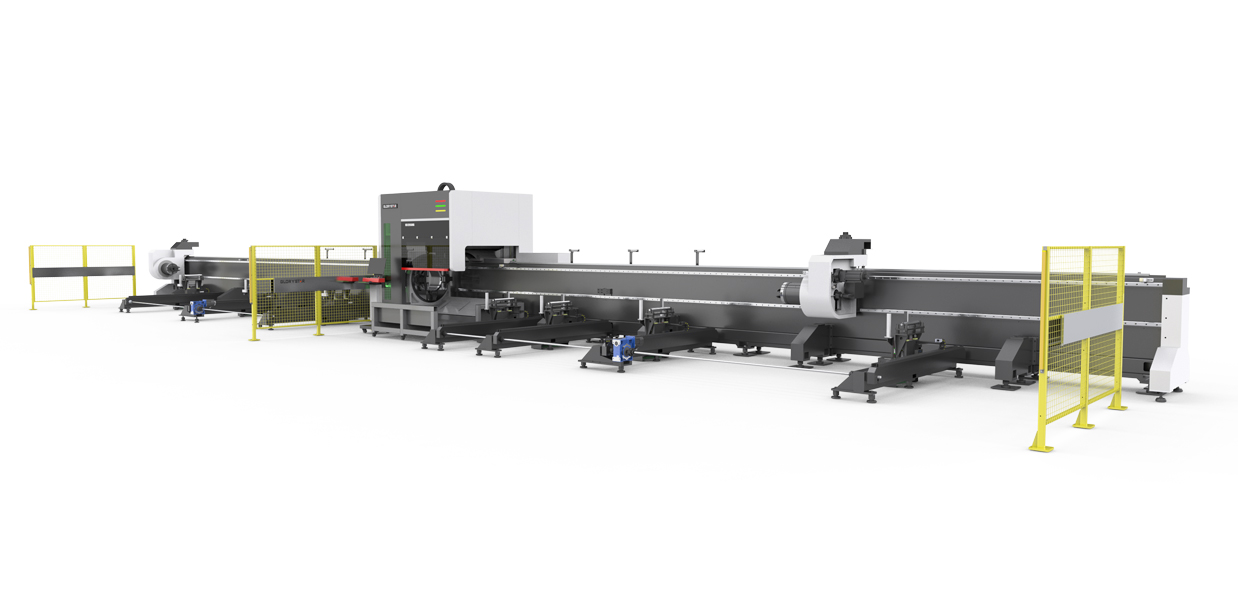

NS-HG Series

CNC Laser Cutting

NS-HG Series

  NS-12036HG NS-12056HG
Max. Pipe Size 12000mm×Φ360mm / 39ft×Φ1.18ft 12000mm×Φ560mm / 39ft×Φ1.84ft
Repeat Positioning Accuracy ≤0.05mm / ≤0.002in ≤0.05mm / ≤0.02in
Positioning Accuracy ≤0.1mm / ≤0.004in ≤0.1mm / ≤0.004in
Max. Positioning Speed 50m/min / 164ft/min 50m/min / 164ft/min
Max. Bevel Angle ±45° (optional) ±45° (optional)
Max. Acceleration 0.5G 0.4G
Max. Chuck Speed 50r/min 30r/min
Pipe Weight ≤1000Kg / ≤2205lbs ≤2000Kg / ≤4409lbs
Machine Weight 25T / 55116lbs 29T / 63835lbs
Machine Footprint 30000×5500mm / 398×18ft 30000×5500mm / 398×18ft
Power Input 380VAC, 50Hz 380VAC, 50Hz
Round Pipe Processing Range Φ20mm-Φ360mm / Φ0.8in-Φ14.2in Φ30mm - Φ560mm / Φ1.2in-Φ22in
Square Pipe Processing Range 20×20mm-360×360mm / 0.8×0.8in-14.2×14.2in 30×30mm - 400×400mm / 1.2×1.2in-15.8×15.8in
I-Beam Processing Range 10-32# (100x70mm~300x152mm / 3.9x2.8in~11 10-50# (100x70mm~500x202mm / 3.9x2.8in~20x8in)

- 3 Chuck I Up to 12KW of power
- Single Tube Weight Capacity 2000kg
- Maximum Tube Length 12000mm

- High-strength welded bed with cage-type structure; one-click heavy-duty full-length pipe cutting chuck.
- Side-mounted chuck design for easier loading and unloading of heavy pipes.
- Three-chuck structure enables zero-tail cutting and full-length processing.
- Internal pipe fume extraction with zoned dust removal in cutting area for superior dust collection performance.
