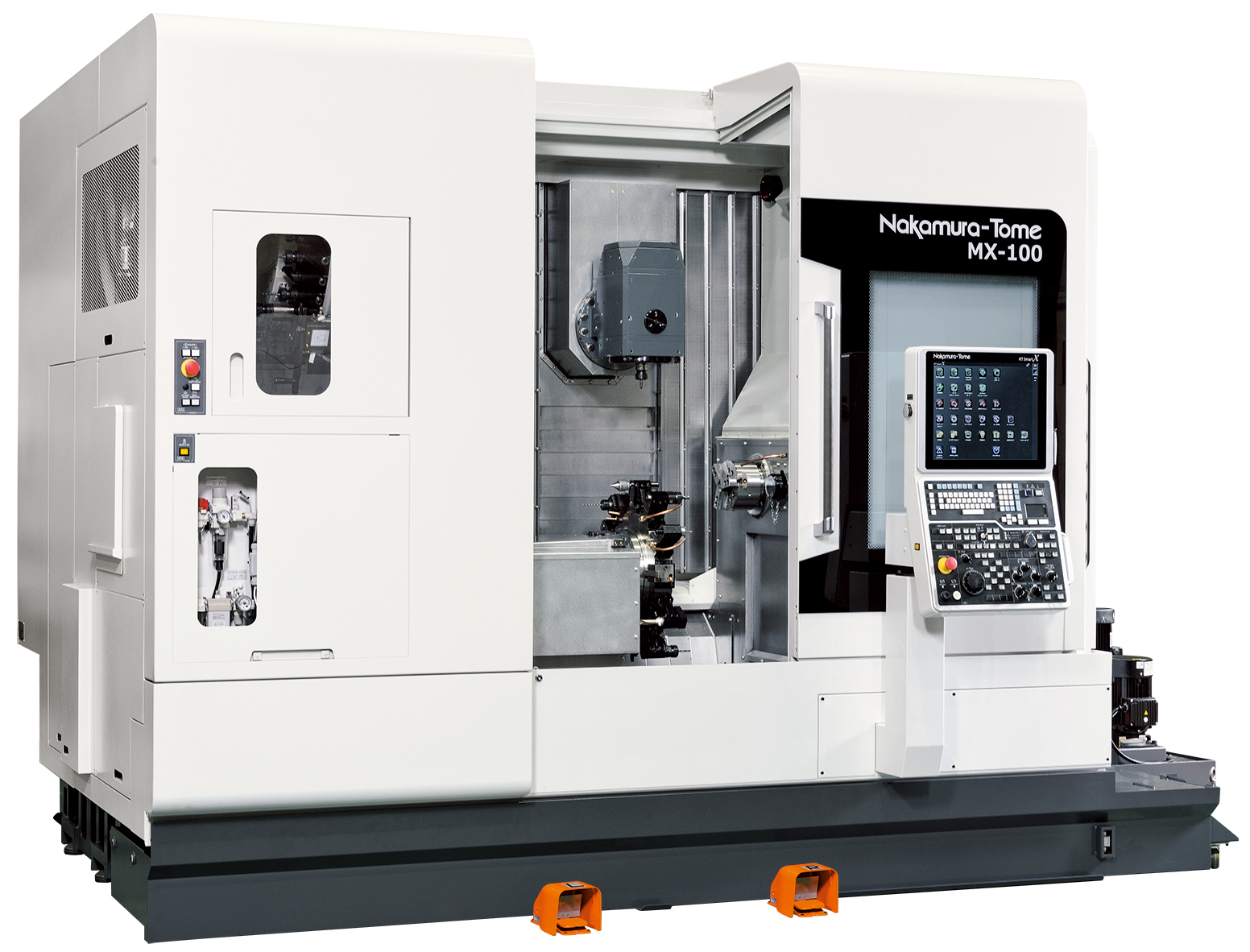

MX-100
| φ51mm | φ65mm (op.) | |
|---|---|---|
| Max. turning diameter | 305mm | |
| Max. turning length | 834mm | |
| Distance between spindles | max.1,000mm/min.230mm | |
| Bar capacity(φ) | 51mm | 65mm (only L) |
| Chuck size | 6″,8″ | |
| Spindle speed | 6,000min-1 | 4,500min-1 |
| Left Spindle motor | 11/7.5kW | 15/11kW |
| Right Spindle motor | 11/7.5kW | - |
| Floor space | height:2,662mm / width:4,350mm / depth:2,795mm | |
Tool Spindle, ATC and Lower-turret,
CNC Multitasking Machine with Opposed Twin-spindles.
Maximum Tool spindle speed 12,000min-1 (op. 20,000min-1).
Distance between spindles 1,000mm.
Y-axis stroke 210mm (±105mm).
B-axis swiveling range 190° (±95°).
Number of tools for ATC magazine 36 pcs. (op. 48 ,72).
twin spindle , Save the cycle time by Simultaneous operation with Upper and Lower tools.
Faster cycle times thanks to simultaneous machining with upper and lower tools on L/R opposed twin-spindles.
The slides, having a vertical column structure, are mounted on a high rigidity horizontal machine bed with low gravity design.
Compact ATC Multitasking Machine
Floor space 4,350mm×2,795mm.
Equipped with Built-in Spindles.
Can be equipped with 6 ~ 8-inch chucks.
