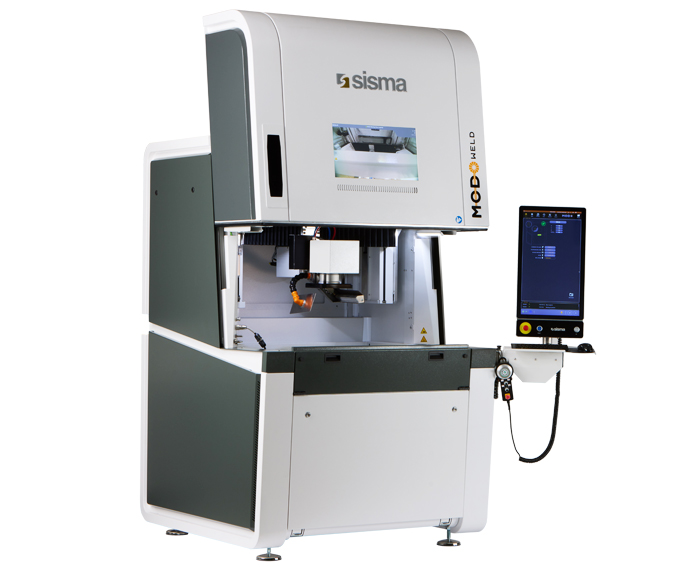

MODO Weld
| Technical data | |
| Welding laser sources | Fiber 2000 CW |
| Axes stroke / Working plane area | Max. 600 x 470 x 235 h mm (Size M) |
| Positioning repeatability | Up to 10 μm |
| Available control panels | Standard / Plus / Touch |
| Air supply | Dual, independent and adjustable by program |
| Process gas | Self-adjusting |
| Max. dimensions (L x P x A) | Size S: 980 x 1980 x h 2060 mm / Size M: 1300 x 1980 x h 2060 mm |
| Weight | Size S: 1100 kg / Size M: 1300 Kg |
UNIVERSAL MODULAR WELDING SYSTEM
MODO Weld offers a wide range of modular solution to meet the most challenging production requirements with the highest quality and and efficency.MODO Weld It can be configured in terms of size, accessibility, command and control systems, laser and optics, movements (of the scanning head and/or parts). It has a large number of accessories and devices available for both hardware and software.
This machine is suitable for: Jewelry and Industry
HIGH PRODUCTIVITY
A valuable aid in the production process to reduce time and maximise profits.
VERSATILITY
For different types of parts, processes, or workable materials.
SAFETY
Class 1 machine.
ABSOLUTE VERSATILITY
MODO Weld performs welding on stainless steel, aluminum and its alloys, copper and its alloys, gold, silver, and titanium alloys with the highest standards of quality and precision, achieving penetration depths of over 4 mm even on reflective materials. The gases required for the process can be controled and set via software.
The user is able to choose the most suitable programming and control modes for the work, through advanced software functions and various human-machine interface modes.
