Automatic Band Saws

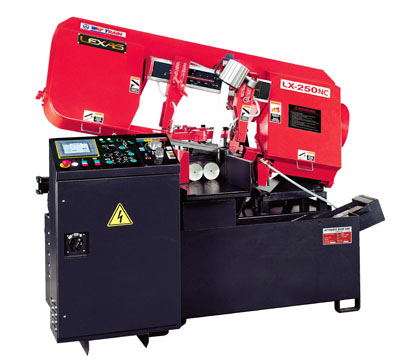

Lexas LX-250NC
| Blade Size | 27x0.9x3510mm |
| Blade Speed | 50Hz 16~66m/min, 60Hz 20~80 m/min |
| Main Motor | 3HP(2.2kw)x4P |
| Hydraulic Motor | 1HP(0.74kw)x4P |
| Coolant Motor | 1/6 HP(0.124kw)x4P |
| HydraulicTank | 30Liters |
| Coolant Tank | 40Liters |
| Allowable Loading Capacity | 1500kg |
| Roller Stand Loading Capacity | 1000kg |
| Bundle Cutting(WxH) | 150~250x100~130mm |
| Cut off Length | Over 10mm |
| Cutting Amount Setting | 1~9999 |
| Feeding Stroke | 400mm |
| Minimum No Material Detecting | 32mm |
| Table Height | 750mm |
- Power driven wire brush
- Human-machine interface control panel
- Hydraulic blade tension
- Hydraulic automatic chip conveyor
- Hydraulic carbide blade guide
- Broken blade detection sensor
- Full stroke hydraulic vises
- Inverter controls blade speed
- Rotary encoder measure feeding length
- Can save 10 cutting presets memory
- Vise pressure regulator (opting)
- Hydraulic vertical press device (option)
