Gear Hobbing

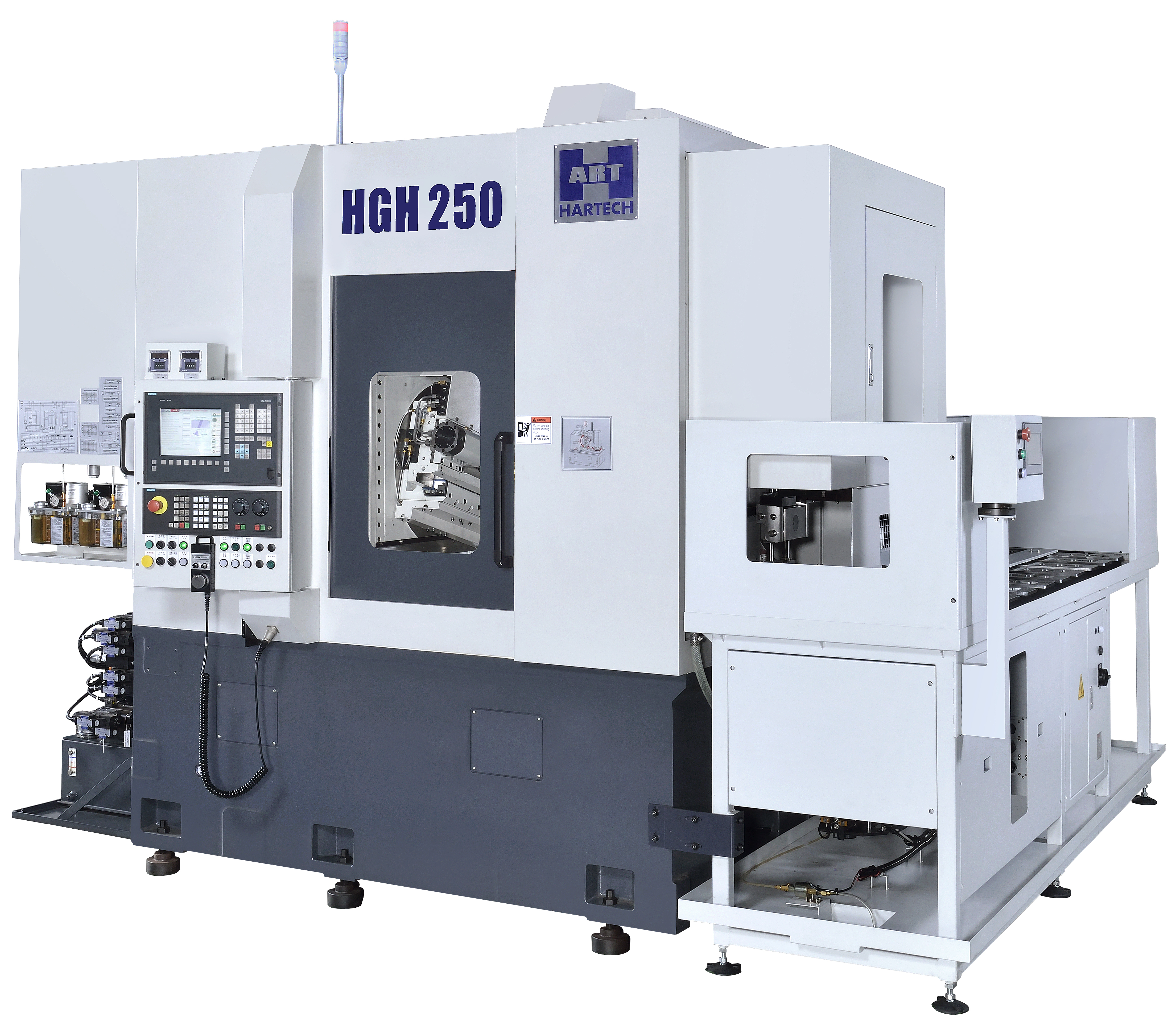

HOTA HGH 150/250
| GEAR HOBBING MACHINE HGH 150 / HGH 250 | |||
|---|---|---|---|
| Articles | Description | HGH 250 Capacities | HGH 150 Capacities |
| Works | Max. O.D. | 250 mm | 150 mm |
| Max. Module | 6 mm | 4 (6) mm | |
| Radial infeed X-axis | Distance between hob and work | 25~215 mm | 25~190 mm |
| Axial infeed Z-axis | Max. in feed | 250 mm | 250 mm |
| Hob head swivel A-axis | Swivel angle | ±45º | ±45º |
| Hob shifting V-axis | Max. infeed | 180 mm | 140 (180) mm |
| Hob shifting B-axis | Max. hob length | 220 mm | 160 (200) mm |
| Max. rpm | 2000 rpm | 2000 rpm | |
| Max. hob O.D. | 130 mm | 90 mm | |
| Work spindle C-axis | Max. rpm | 300 rpm | 300 rpm |
| Power | Input power ( V±10% ) | 3Φ 380 V AC | 3Φ 220 V AC |
| Currency | 50-60 Hz | 50-60 Hz | |
| Controlled voltage | 24 V DC | 24 V DC | |
| Hydraulic Unit | Motor power | 1.5 KW | 1.5 KW |
| Oil tank | 80 Liter | 80 Liter | |
| Controller | -- -- | SIEMENS / FANUC | SIEMENS / FANUC |
| NC axis | B、C、X、Z、A、V Servo motor | B、C、X、Z、A、V Servo motor | |
| Interface | Type/Language | Dialog function / Mandarin or English | Dialog function / Mandarin or English |
| Cutting method | Standard : 6 methods | Standard : 6 methods | |
| Crowning / Worm | Crowning / Worm | ||
| Double gear | Double gear | ||
| Cutting mode | Cut method | Dry cut / Wet cut | Dry cut / Wet cut |
| Dimension | W x L x H | 2688 x 2630 x 2885 mm | 2688 x 2630 x 2885 mm |
| Weight | -- -- | 9000 KG | 9000 KG |
