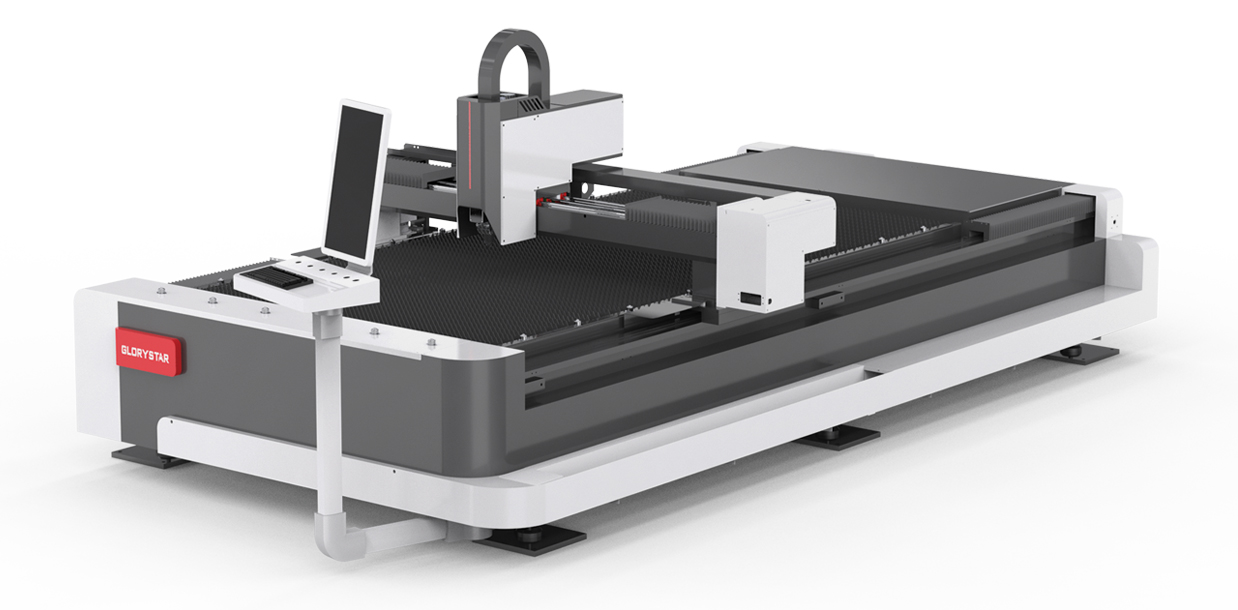

GS Series

CNC Laser Cutting

GS Series

Code name of width 3015
Maximum material width (mm) 3000×1500
X axis travel (mm) 1520
Y axis travel (mm) 3020
Z axis travel (mm) 80
X/Y axis positioning accuracy ±0.05mm/m
X/Y axis repeat positioning accuracy ≤0.04mm
Maximum positioning speed 140m/min
Maximum acceleration 1.2G
Slit width 0.1-0.5mm(Measured value below 3mm thickness)
Incision roughness Ra3.2-Ra25.4(Measured value below 3mm thickness)
Maximum cutting thickness range Refer to the craft parameter table
Minimum setting unit 0.001mm
Floor area of machine tool (mm) 6000×3000
Host volume (mm) 4850*2250*1700
CNC system CypCut
Monitor 19″LCD
Transfer method Gear rack dual drive
Maximum load-bearing capacity of worktable (tons) 1
Machine weight (tons) 3
Total installed power consumption (approximately) Laser power:1000W 17kW
Laser power:1500W 19.5kW
Laser power:2000W 22kW
Power requirements AC380V,50Hz;3P+N+PE
Total power protection level IP54



Powerful Raycus Laser Source - Excellent beam quality
Glorystar Laser Cutting Head - Automatic focusing for high efficiency
Stable & Reliable Machine Bed - Double Layer,Hollow

Delicate and Flexible
The core transmission components such as gear rack and reducer adopt international famous brands, which have high idle speed; The machine is equipped with professional operating software, which supports advanced technologies such as cooling point, sharp angle ring cutting and release angle, support dual-drive error monitoring function.

Low Space Cost
All-in-one integrated design, which means it’s small in size, less floor space occupation, low requirements of the site, no need to be equipped with professional workshops. According to the development demands of the enterprise, the forklift can be used to quickly adjust the position of the machine at any time, which is convenient and flexible.
