GS-CL

CNC Laser Cutting

GS-CL

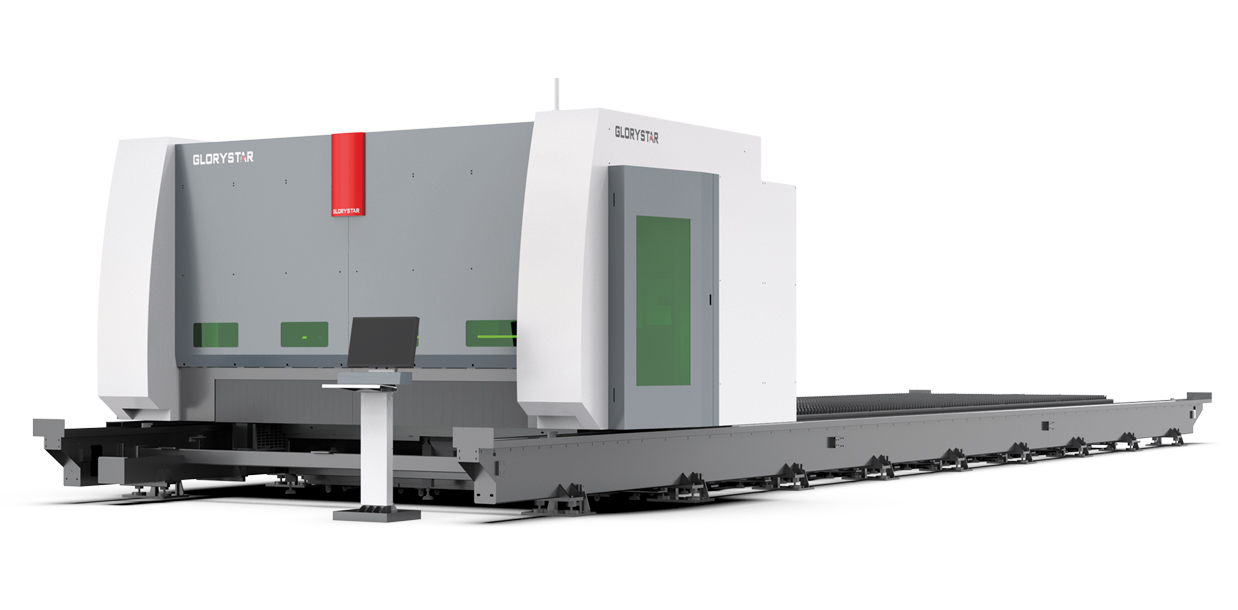

GS-13030CL GS-16035CL GS-25035CL
Max. material width (mm) 13000×3000 43×10ft bevel cutting: 12500×2500 41×8ft 16000×3500 52×11ft bevel cutting: 15500×3000 49×10ft 25000×3500 82×11ft bevel cutting: 24500×3000 80×10ft
X axis travel (mm) 3050 / 10ft 3550 / 11.7ft 3550 / 11.7ft
Y axis travel (mm) 13050 / 42.8ft 16050 / 52.7 25050 / 82.2ft
Z axis travel (mm) 290 (bevel cutting: 450) / 11.4in (bevel cutting: 17.8in) 290 (bevel cutting: 450) / 11.4in (bevel cutting: 17.8in) 290 (bevel cutting: 450) / 11.4in (bevel cutting: 17.8in)
X/Y positioning accuracy ≤0.03mm/m / 0.00118in/39.4in ≤0.03mm/m / 0.00118in/39.4in ≤0.03mm/m / 0.00118in/39.4in
X/Y repeat positioning accuracy ≤±0.02mm / 0.00079in ≤±0.02mm / 0.00079in ≤±0.02mm / 0.00079in
Max. synthetic positioning speed 50m/min / 164ft/min 50m/min / 164ft/min 50m/min / 164ft/min
Max. acceleration 1.2G 1.2G 1.2G
Drive method X/Y axis: Rack and pinion, Z axis: Ball screw X/Y axis: Rack and pinion, Z axis: Ball screw X/Y axis: Rack and pinion, Z axis: Ball screw
Min. setting unit 0.001mm / 0.00003937in 0.001mm / 0.00003937in 0.001mm / 0.00003937in
Floor area of machine tools (mm) 21000×11500 69×38ft 25000×12000 82×39ft 34000×12000 112×39ft
Host volume (mm) 18700×5600×2600 61×18×9ft 22500×6300×2600 74×21×9ft 31500×6300×2600 103×21×9ft
CNC system BOCUH BOCUH BOCUH
Monitor 27" LCD 27" LCD 27" LCD
Transfer method Refer to the following process parameter table Refer to the following process parameter table Refer to the following process parameter table
Max. load-bearing capacity of worktable (tons) 20 / 44093lbs 35 / 77643lbs 55 / 121753lbs
Total installed power consumption 10000W 80KW 10000W 80KW 10000W 80KW
Total installed power consumption 12000W 100KW 12000W 100KW 12000W 100KW
Total installed power consumption 15000W 120KW 15000W 120KW 15000W 120KW
Total installed power consumption 20000W 150KW 20000W 150KW 20000W 150KW
Total installed power consumption 30000W 200KW 30000W 200KW 30000W 200KW
Total installed power consumption 40000W 250KW 40000W 250KW 40000W 250KW
Power requirements AC380V , 50Hz ; 3P+N+PE AC380V , 50Hz ; 3P+N+PE AC380V , 50Hz ; 3P+N+PE
Total power protection level IP54 IP54 IP54

Open Type
Single Table

Laser Power 12-60kW
Size 13x3m, 16x3.5m, 25x3.5m

- Extra-large segmented bed design with fully customizable cutting dimensions to suit your needs.
- Unmatched Z-axis travel and height capacity - cuts square tubes and channel steel up to 400mm with ease.
- Optional bevel cutting feature available for enhanced versatility.
- Industry-exclusive smart collision detection system for advanced operational safety.
