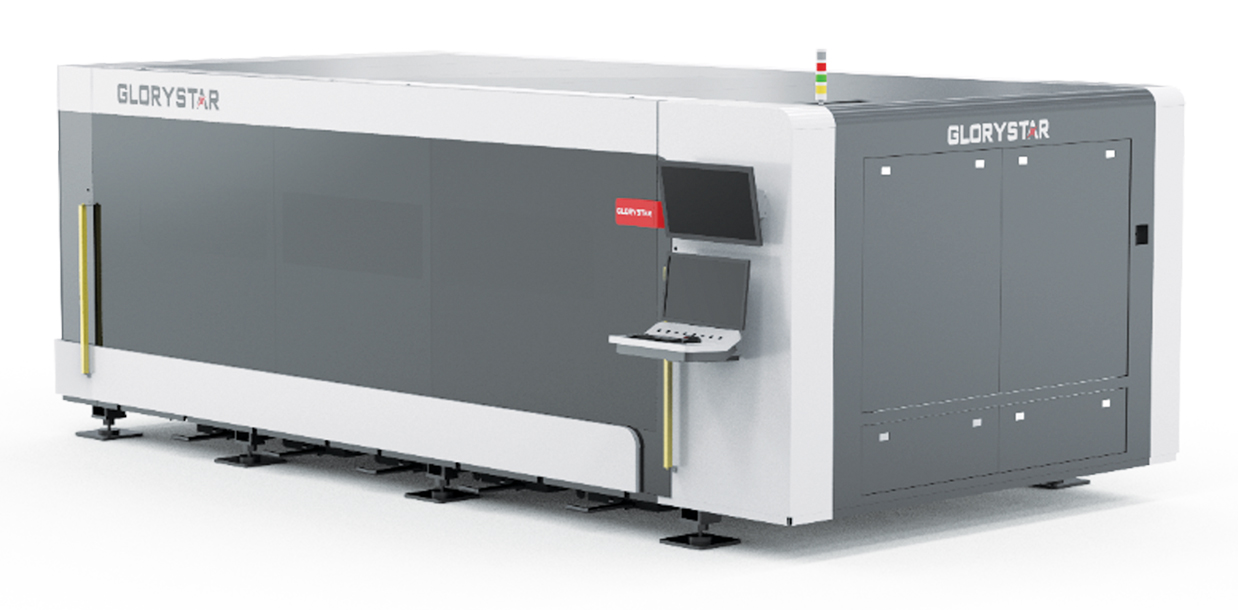

CNC Laser Cutting
GS-C
| GS-1510C | GS-3015C | GS-4020C | |
|---|---|---|---|
| Max. material width (mm) | 1500×1000 5×3.3ft | 3000×1500 10×5ft | 4000×2000 13.2×6.6ft |
| X axis travel (mm) | 1020 / 3.4ft | 3020 / 10ft | 4020 / 13.2ft |
| Y axis travel (mm) | 1520 / 5ft | 1520 / 5ft | 2000 / 6.6ft |
| Z axis travel (mm) | 95 / 3.8in | 95 / 3.8in | 95 / 3.8in |
| X/Y positioning accuracy | ≤0.03mm/m / 0.00118in/39.4in | ≤0.03mm/m / 0.00118in/39.4in | ≤0.03mm/m / 0.00118in/39.4in |
| X/Y repeat positioning accuracy | ≤±0.02mm / 0.00079in | ≤±0.02mm / 0.00079in | ≤±0.02mm / 0.00079in |
| Max. synthetic positioning speed | 140m/min / 460ft/min | 140m/min / 460ft/min | 140m/min / 460ft/min |
| Max. acceleration | 1.5G | 1.5G | 1.5G |
| Slit width | 0.1mm-0.5mm / 0.0039in-0.0197in | 0.1mm-0.5mm / 0.0039in-0.0197in | 0.1mm-0.5mm / 0.0039in-0.0197in |
| Notch roughness | Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in | Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in | Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in |
| Max. cutting thickness range | Rack and pinion dual drive | Rack and pinion dual drive | Rack and pinion dual drive |
| Min. setting unit | 0.001mm / 0.00003937in | 0.001mm / 0.00003937in | 0.001mm / 0.00003937in |
| Floor area of machine tools (mm) | 4000×3000 13×10ft | 6000×2500 19.7×8.2ft | 8000×3850 26.3×12.7ft |
| Host volume (mm) | 3130×2750×2300 10.3×9×7.6ft | 5100×2400×2300 16.8×7.9×7.6ft | 6200×3760×2300 20.4×12.4×7.6ft |
| CNC system | FSCUT(optinal Glorystar system) | FSCUT(optinal Glorystar system) | FSCUT(optinal Glorystar system) |
| Monitor | 27" LCD | 27" LCD | 27" LCD |
| Max. bearing capacity of workbench (tons) | 0.75 / 1654lbs | 1 / 2205lbs | 1.8 / 3969lbs |
| Total installed power consumption | 1500W 19.5KVA | 1500W 19.5KVA | 1500W 19.5KVA |
| Total installed power consumption | 3000W 27KVA | 3000W 27KVA | 3000W 27KVA |
| Total installed power consumption | 6000W 42KVA | 6000W 42KVA | 6000W 42KVA |
| Total installed power consumption | 20000W 150KVA | 20000W 150KVA | 20000W 150KVA |
| Power requirements | AC380V , 50Hz ; 3P+N+PE | AC380V , 50Hz ; 3P+N+PE | AC380V , 50Hz ; 3P+N+PE |
| Total power protection level | IP54 | IP54 | IP54 |
Enclosed
Single Table
Laser Power 1.5-6kW
Size 3x1.5m, 4x2m
- Space-saving compact design for streamlined and efficient workshop layout.
- Fully enclosed structure with automated lift doors and observation windows ensures safety and visibility.
- Ergonomically designed electric worktable allows for effortless loading and unloading.
- Integrated safety door locks and sensor light curtain provide maximum protection for operators.
