CNC Flat Bed Turning Center

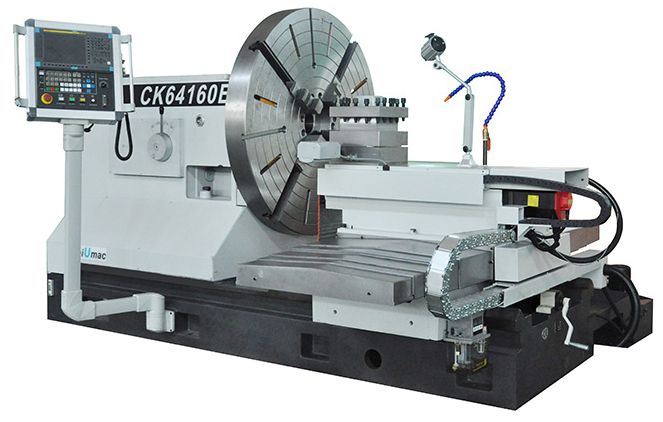

CK64160E Flat Bed Lathe
| ITEMS | UNIT | CK64160E |
| Processing | ||
| Max.cutting Dia. for disc parts | mm | Ø1600 |
| Max. cutting Dia. for axle parts | mm | Ø1000 |
| Width of bed | mm | 1100 |
| Max. workpiece length | mm | 500 |
| Spindle | ||
| Spindle nose | A₂-15 | |
| Spindle bore | mm | Ø130 |
| Taper of spindle hole | Metric Ø140 1:20 | |
| Steps of spindle speed | manual 2 gears，stepless in each | |
| Range of spindle speed | rpm | 2.5～34、20～270 |
| Feed | ||
| Rapid feed for axis Z | m/min | 6 |
| Rapid feed for axis X | m/min | 12 |
| Max. travel of axis Z | mm | 500 |
| Max.travel of axis X | mm | 900 |
| Turret | ||
| Tool post stations | pcs | 4 |
| Spindle center to tool mounting surface | mm | 50 |
| Others | ||
| Min.input | mm | 0.001 |
| Power of main motor | kW | 26 |
| Power of cooling pump | W | 180 |
| Overall dimensions (LxW×H) | mm | 3500×2600×2100 |
| Net weight | kg | 11000 |
- Suitable for turning of large flat parts of plate and ring type.
- 1100mm wide base with double convex guide ways supersonically hardened.
- Distance between cross bed and chuck can be manually adjusted.
