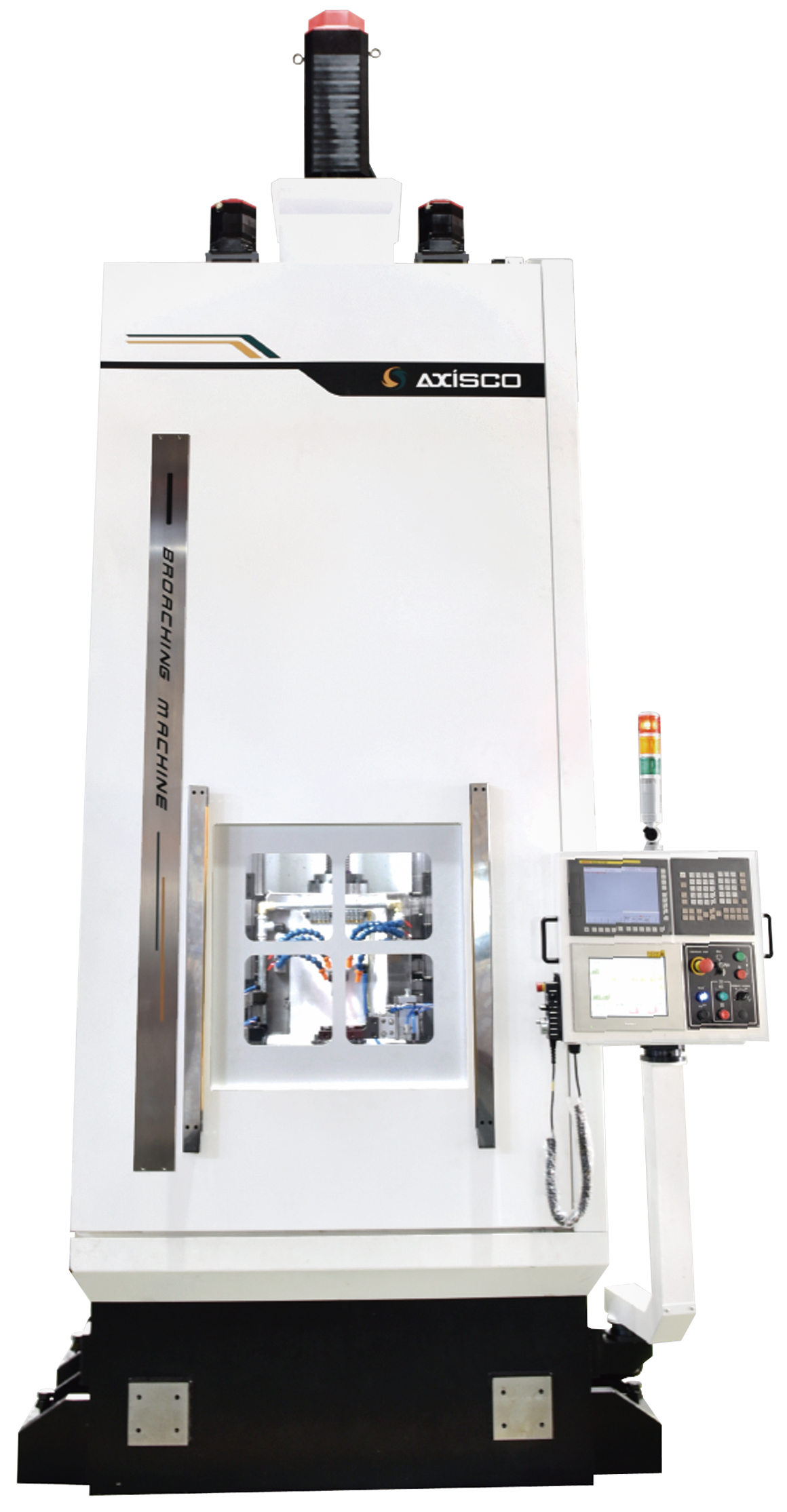

CHH-1015 Hard Broaching Machine
| MODEL | CHH-1015 | |
|---|---|---|
| Pulling force | Ton | 15 |
| Max.stroke | mm | 1500 |
| Cutting speed | m/min,60Hz | 3-10,40-60 |
| Return speed | m/min,60Hz | 12 |
| Return speed | m/min,60Hz | 12 |
| Max.workpiece size | mm | Φ250 |
| Teble height | mm | 1280 |
| Main motor | kw | 60 |
| Machine height (H) | mm | 5000 |
Features
- The ultimate broaching solution for heat-treated splines
- The table moves upward to finish all internal teeth in a blink
- High rigidity structure along with high strength SKF roller screw
- FANUC CNC system
- Broaching speed up to 60 m/min
- Workpiece hardness up to 50 - 62 HRC can be machined
Smart Interface
- Visual interface for easy interpretation and operation
- Interface design can be fine-tuned to meet customer needs
- Broaching speed, machining stroke, and various functions can be set through the human-machine interface
