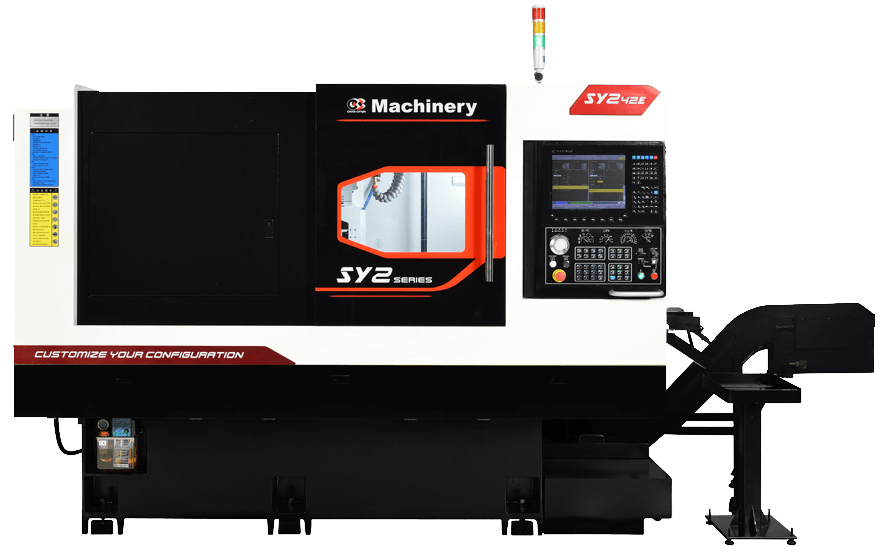

Swiss Type Turning Center
SY2-42E
| Specifications | SY2-42E Belt Type | SY2-42E Direct Drive |
|---|---|---|
| Controller | SYNTEC | SYNTEC / MITSUBLSHI |
| Capacity | ||
| Max. turning. dia. | Ø 42 mm | Ø 42 mm |
| Max. turning length per chuck | 320 mm (Guide bush) / 110 mm (without guide bush) | 320 mm (Guide bush) / 110 mm (without guide bush) |
| Axis specifications | ||
| X1-axis travel | 220 mm | 220 mm |
| Z1-axis travel | 320 mm (Guide bush) / 460 mm (Without guide bush) | 320 mm (Guide bush) / 460 mm (Without guide bush) |
| Y1-axis travel | 620 mm | 620 mm |
| X1/Y1/Z1-axis motor | 1.3 kw / 1.3 kw / 0.85 kw | 1.5 kw / 1.5kw / S:1.0kw，M:1.5kw |
| X1/Y1/Z1-axis rapid travel speed | 30 m/min | 30 m/min |
| X2/Y2/Z2-axis travel | 380 / 130 / 464.5 mm | 380 / 130 / 464.5 mm |
| X2/Y2/Z2-axis motor | 0.85 kw/0.75 kw/0.85 kw | 1.0kw / 0.75kw / S:1.0kw，M:1.0kw |
| X2/Y2/Z2-axis rapid travel speed | 30/5/30 m/min | 30/5/30 m/min |
| Min. input unit | 0.001 mm | 0.001 mm |
| Spindle | ||
| Max. bar feeding dia. | Ø 42 mm | Ø 42 mm |
| Max. speed of spindle | St:4500rpm / Op:6000 rpm | 6000 rpm |
| Center height | 1100 mm | 1100 mm |
| Spindle collet | TRB-42 | TRB-42 |
| No. of O.D. tools | 6 | 6 |
| O.D. tool size | □16 mm*5 / □20 mm*1 | □16 mm*5 / □20 mm*1 |
| No. of I.D. tools | 5 | 5 |
| I.D. tool size | Ø 25 mm | Ø 25 mm |
| Spindle motor | 7.5 kw | 11 kw |
| C-axis Index positioning | 0.001 | 0.001 |
| Spindle live tooling | ||
| No. of radial live tooling | 6 | 6 |
| Radial live tooling size | ER-20 | ER-20 |
| Radial live tooling motor | 1.5 kw | 1.5 kw |
| Max. speed of radial live tooling | 6000 rpm | 6000 rpm |
| No. of axial live tooling | 4 | 4 |
| Axial live tooling size | ER-20 | ER-20 |
| Axial live tooling motor | 0.75 kw | S:1.0kw / M1.5kw |
| Max. speed of axial live tooling | 6000 rpm | 6000 rpm |
| Sub Spindle | ||
| Max. bar feeding dia. | Ø 42 mm | Ø 42 mm |
| Max. speed of sub spindle | St:4500rpm / Op:6000rpm | 6000 rpm |
| Sub spindle motor | 4.4 kw | 11 kw |
| Sub spindle collet | TRB-42 | TRB-42 |
| I.D. tool size | Ø 25 mm | Ø 25 mm |
| C-axis index positioning | 0.001 | 0.001 |
| Sub spindle live tooling | ||
| No. of axial live tools | 8 | 8 |
| Axial live tooling motor | 3.0 kw | 2.2 kw |
| Max. speed of axial live tooling | 6000 rpm | 6000 rpm |
| Axial live tooling size | ER-20 | ER-20 |
| Hydraulic unit | ||
| Hydraulic pump | 1 HP/0.75 kw | 1 HP/0.75 kw |
| Coolant Pump | ||
| Main & Sub spindle upper flush pump | 1 HP/0.75 kW | 1 HP/0.75 kW |
| Tool coolant pump | 1 HP/0.75 kW | 1 HP/0.75 kW |
| Tank capacity | ||
| Hydraulic tank | 46 L | 46 L |
| Coolant tank | 200 L | 280 L |
| Machine | ||
| Voltage stabilizer / transformer | 220V / 30KVA | 220V / 30KVA |
| Machine size(LxWxH) (includes chip conveyor) | 3730 x 1806 x 2155 mm | 3730 x 1806 x 2155 mm |
Swisstype CNC lathe can be installed with or without rotary* guide bush to process whether it is a long or short workpiece. The tooling system can equip 6 O.D. tools, 5 I.D. tools, and up to 17 live tools, with double Y-axis, which gives you the ability to process multiple complex components.
Direct Drive - Enhanced roundness and accuracy are achieved, as there are no gears or belts causing vibrations.
Features
- Multiple Tool System
- Y2 Axis With Live Tooling Function
- With/Without Guide Bush
