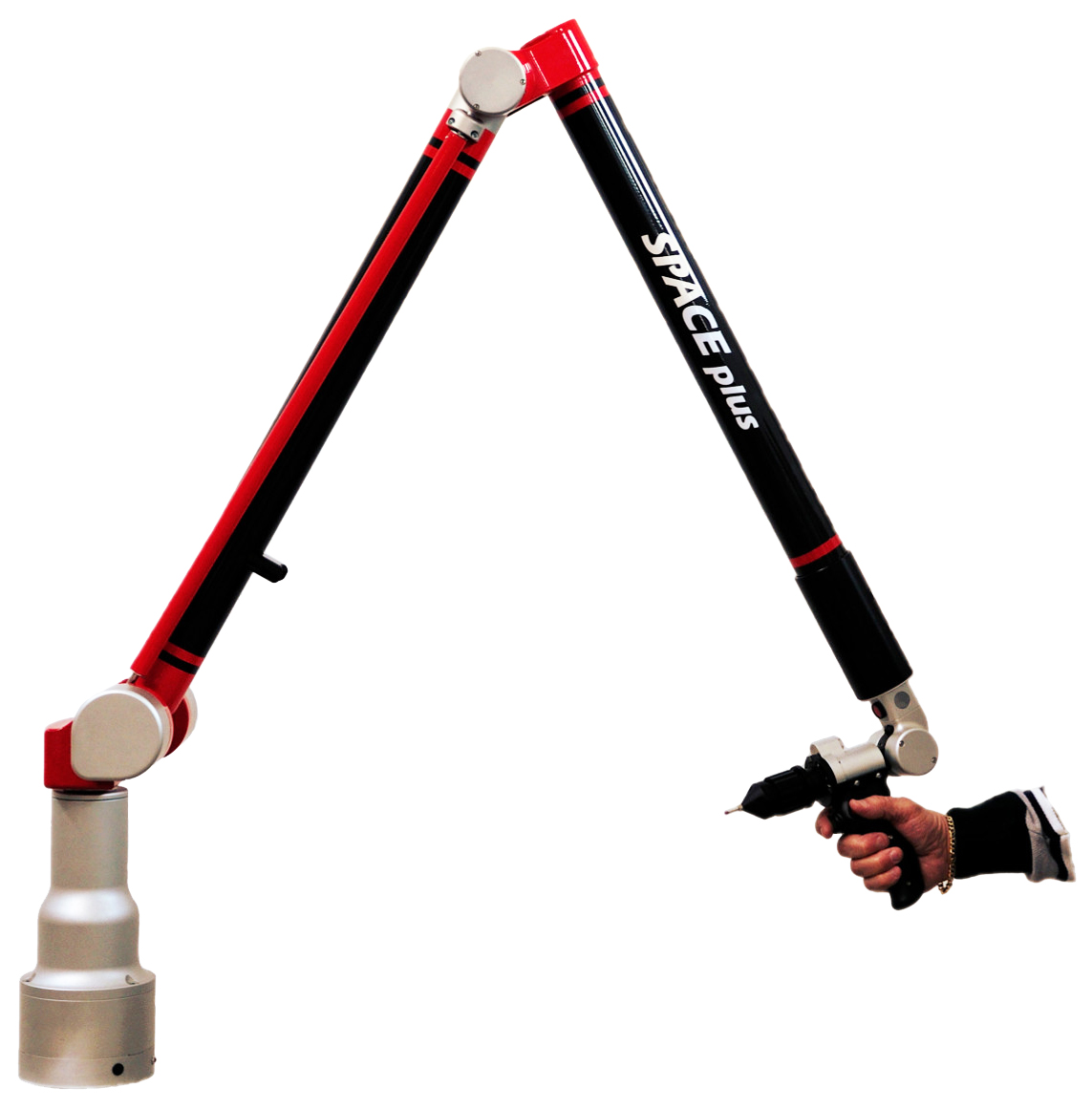

Space PLUS
5 Axes
| Model | Measuring field | Volumetric Accuracy (mm)* | Repeatability (mm)* |
|---|---|---|---|
| SPACE Plus 1800 | 1800 mm | 0,020 | 0,012 |
| SPACE Plus 2500 | 2500 mm | 0,026 | 0,016 |
| SPACE Plus 3200 | 3200 mm | 0,036 | 0,020 |
| SPACE Plus 4000 | 4000 mm | 0,046 |
0,024 |
7 Axes
| Model | Measuring field | Volumetric Accuracy (mm)* | Repeatability (mm)* |
|---|---|---|---|
| SPACE Plus 1800 | 1800 mm | 0,027 | 0,017 |
| SPACE Plus 2500 | 2500 mm | 0,034 | 0,021 |
| SPACE Plus 3200 | 3200 mm | 0,045 | 0,026 |
| SPACE Plus 4000 | 4000 mm | 0,056 | 0,030 |
OUR MOST ICONIC LINE, RENEWED
The most accurate portable arm of its kind, from 1.8 up to 4 m diameter and configured with 6 or 7 rotation axes: a large selection to cover any necessity. Since the invention of the Articulated Arms, the SPACE lines represent the brand all over the world, now renewed to give the best usage eperience.
MECHANICALLY BALANCED
The SPACE Plus line is balanced thanks to a couple of mechanical springs, a reliable solution to allow the user to move the instrument without loads. The result is an incredible accuracy, obtained under an very comfortable handling experience.
PERFECT FOR ANY MEASURE
With dimensions from 1.8 up to 4 m diameters, the SPACE Plus covers the majority of the measuring ranges requested by the market. The 6 axes configuration ensure the highest accuracy, while the 7 axes one, combined with the laser scanner, becomes an incredibly powerful setup, capable to satisfy the most demanding requirements
READY WHEN YOU ARE
Thanks to the new updates on the electronics, the SPACE Plus line is always ready to measure. It automatically recognizes when you take it from its safe position, instanlty unlocking its brake system and re-locking it when you put it back.
