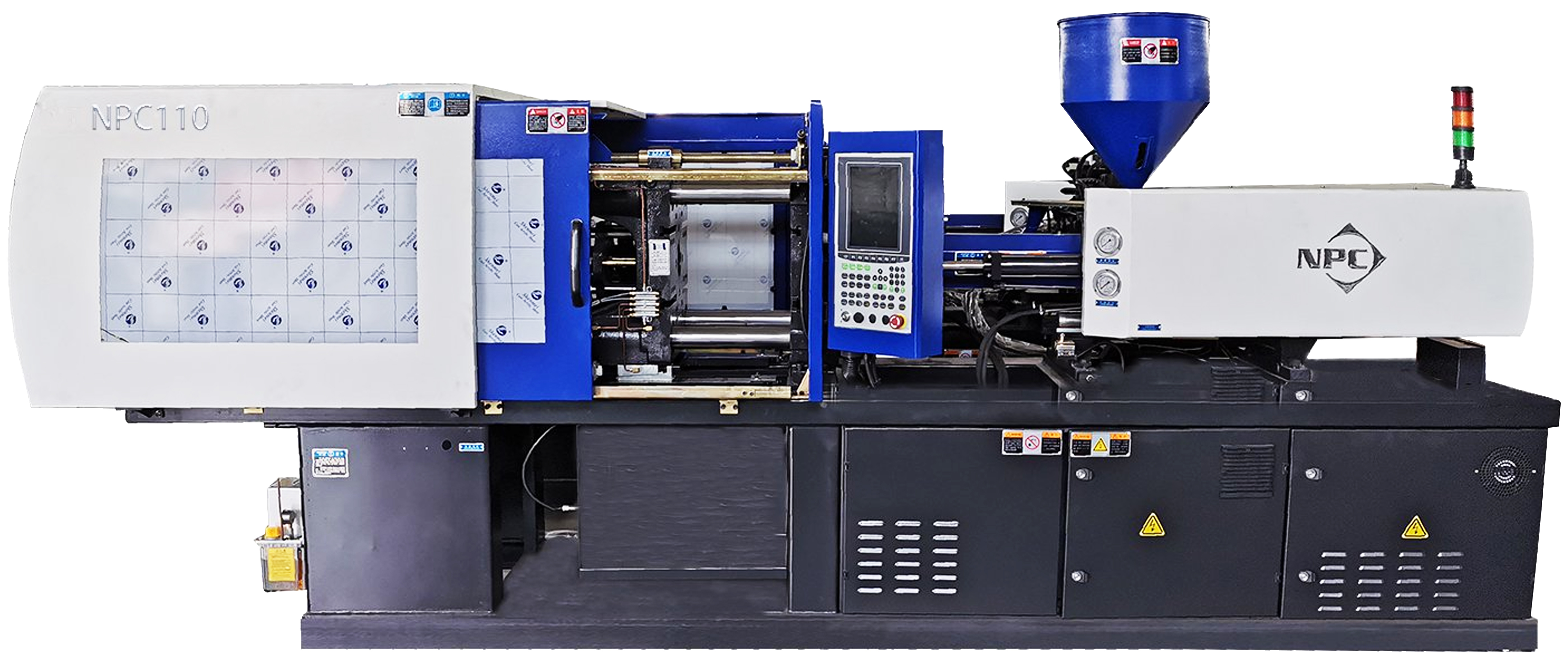

NPC110 Servo 110 Ton Injection Molding Machine

INJECTION UNIT

Models A B C D
Screw Diameter mm 32 35 38 42
Screw L/D ratio 24.1 22 20 18.4
Shot volume(theoretical)(ps) cm³ 137 163 192 235
Injection weight ps  125 148 175 213
Injection rate g/s 74 89 105 128
Injection pressure Mpa 249 208 176 144
Screw speed rpm 210 210 210 210

CLAMPING UNIT

Clamping force 1100KN
Open stroke 350mm
Space between tie bars(W*H) 360*360mm
Max.Mould height 380mm
Min Mould height 150mm
Ejector stroke 100mm
Ejector forcee# 38KN

GENERAL

Max pump pressure 16Mpa
Motor Power 18.2KW
Heating Power 9.6KW
Machine size 4.32*1.1*1.9m
Oiltank cubage 155L
Machine weight 3.1t
  • · 1 step bigger motor and pump, make sure machine preforms, make sure the production with less cycle time; avoid over-load alarm in tropical area or hot weather
    · Standard with Bi-metallic screw, machine works durable
    · 1 set Air blow device & Core-pull device
    · 4/4 in/out water distribution
    · Close loop injection
    · Digital proportional back pressure system
    · 10 inches LCD display with multi-language as optional
    · Return line filtration system
    · Automatic safety door device
    · Oil temperature control system
    · The joint connecting part of the oil cooler adopted tougher design
    · Continental rigid design of oil tubes
    · *under NPC280 (including NPC280), it fits in 20GP container
