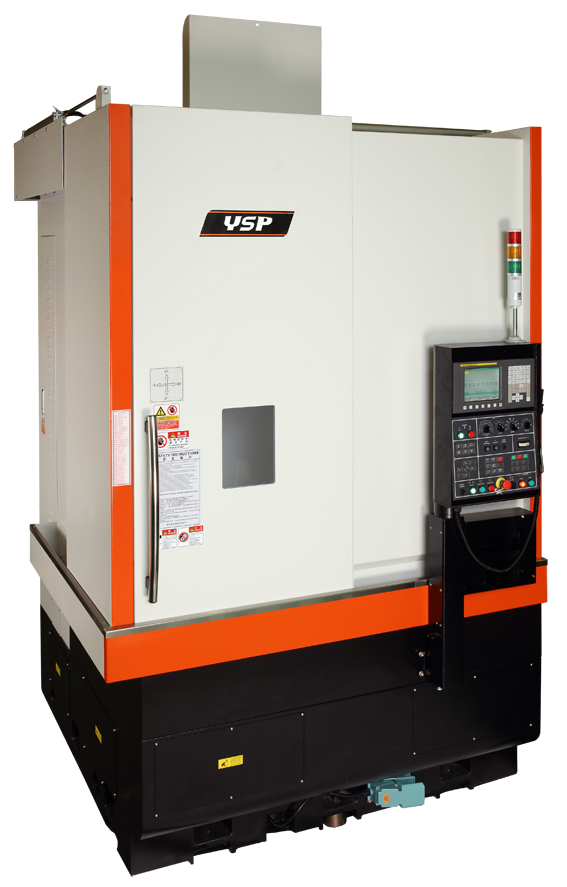

Vertical Boring Mills
VL-850R
| Max. Swing Dia. | Ø1000mm |
| Max. Turning Dia. | Ø850mm |
| Max. Turning Height | 700mm |
| Spindle Nose | A2-11 |
| X-Axis Travel | 500mm |
| Y-Axis Travel | 800mm |
| Spindle Speed | 20~1500rpm |
| Spindle Motor | 37/45 kw |
| Machine (LxW) | 4285x4650mm |
| Machine (H) | 4020mm |
| Machine Weight | 13500kg x 2 |
• Machine bed is made of meehanite cast iron for good rigidity.
• Chuck headstock with powerful coolant system for efficient chip removal.
• Easy loading/unloading, suitable for large, heavy, irregularly shaped workpieces.
• Maintains high circularity without inertial ellipse after machining.
• Solid, heavy duty table face allows close-in fixturing for high-rigidity, vibration free machining.
• Smallest footprint in its class, offering the best work flow available.
