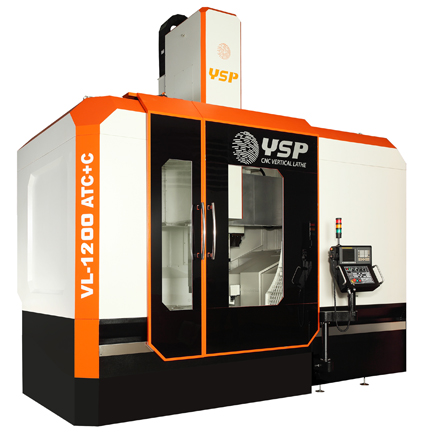

VL-1200 ATC + C

Vertical Boring Mills

VL-1200 ATC + C

Max. Swing Diameter Ø 1650mm
Max. Cutting Diameter Ø 1360mm
Max. Cutting Height 1200mm
Max. Cutting Force 2500kgf
Max. Table Load 5000kg
Table Diameter     1250mm
Table Speed 2-350rpm
Max. Tool Weight 50kg
Time for Tool Change  30sec
X Axis Stroke 1000mm
Z Axis Stroke 900mm
X&Z Axis Rapid Feedrate 10m/min
Cutting Speed 0.01-50rpm



Yu Shine has developed a variety of lathe machines to meet diverse market demands. The heavy duty vertical lathes made by Yu Shine have multiple capabilities suitable for high rigidity and high precision machining. Spindles powered by servo motor, high rigidity linear guide way and stable rotary hydraulic cylinder are all crucial to constantly advance accuracy and efficiency of a lathe machine; and that is what
we keep in mind when making a heavy duty vertical lathe. By offering time- and labor-saving heavy duty vertical lathe at competitive price, Yu Shine is able to provide the optimum solution for our customers from various industries. The features and specifications of heavy duty vertical lathes VL-ATC series are as below. For further details or help, please feel free to contact us at anytime.

• Machine bed is made of meehanite cast iron for good rigidity.
• Chuck headstock with powerful coolant system for efficient chip removal.
• Easy loading/unloading, suitable for big, heavy, irregular shape workpieces.
• Maintains the best circularity without inertial ellipse after machining.
• Solid, heavy duty table face permits close-in fixturing for high-rigidity, vibration free machining.
• Smallest footprint in its class, offering the best work flow available.
