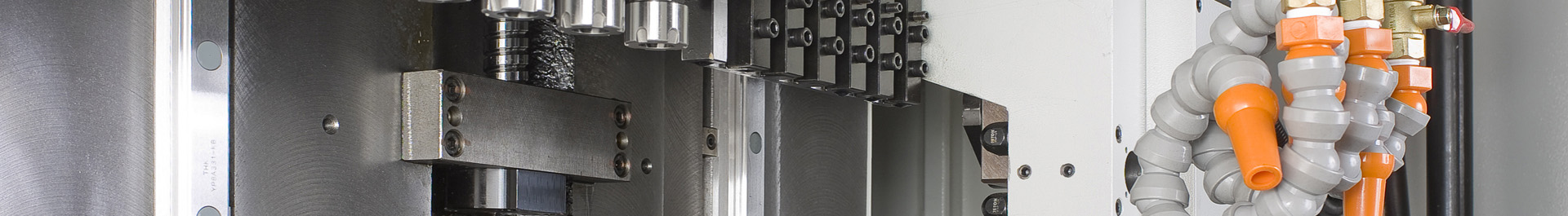

Swiss Type Turning Center

Swiss Type is a Turning Center design that was originally developed for the Swiss watch industry. These machines are designed to turn small, complex, precision parts. Unlike Conventional Lathes where the part is stationary and the tool moves, a Swiss-type turning center allows the part to move in the Z-axis and the tool is stationary – so essentially the spindle is moving in the Z-axis to the tooling.

CB32M/CB36M

CB32M/CB36M

Complete complicated parts machining in one operation:

The twin spindle features a complete driven tooling system and the Y axis main spindle delivers high efficiency and outstanding production capability. The back machining capability can save time and reduce labor costs, creating a huge productive benefit when machining complex workpieces.

Specifications

Specifications

Max. manu. dia. Ø32     Ø36
Bar capacity  Ø32     Ø36
X axis travel 185mm
Y axis travel 490mm
Z axis travel 165mm
X,Y,Z axis rapid travel speed 30m/min
Spindle max.  6000rpm
Spindle motor 5.0kw, 7.0kw opt.
Spindle bar capacity Ø36
Max. manu. dia. Ø32
Sub spindle max. 6000rpm
Sub spindle motor 3.5kw
Sub spindle bore Ø28
Sub spindle bar capacity Ø32
No. of turning tool  4
Radial live tooling max. speed   6000rpm
Axial live tooling max. speed 6000rpm

Video

Video

NCY-32M

NCY-32M

Cut Machining Cost.

Increase Productivity & Profit.

NCY-32M Sliding Head CNC Lathe performs turning, milling, drilling, tapping, cutting and slide turning, all in one operation. Our sliding headstock design, combined with PC-based CNC control, offers high efficiency and precise machining.



Specifications

Specifications

Max. manu. dia. Ø32
Y axis travel 490mm
X axis travel  190mm
Z axis travel 165mm
X,Y,Z axis rapid travel speed 30m/min
Spindle max.   6000rpm
Spindle motor 7.0kw
Spindle bar capacity  Ø32
Spindle live tooling
No. of cross side driving tools 4
No. of front side driving tools 3
Axial live tooling servo motor 0.75kw
Radial live tooling servo motor 1.5kw
Rev. speed of driving tools 6000rpm Stepless speed


Video

Video

CDS 42 (Twin Spindle Twin Platten - Gang Type)

Feature



  • Built for High Accuracy and High Production Operation
  • The CDS machine features a slant bed with an independent gang tool table for main and sub spindle. This saves tool changing time and shortens the cycle time.

Specifications

Specifications

Max. manu. dia.      Ø42
Spindle max. rpm      6000 rpm
X1-axis travel(vertical)      330
Z2-axis travel(cross)     240
Max. bar feeding dia.      Ø42
Collet of spindle      TRB-42
X rapid travel speed      30 m/min
Z rapid travel speed      30 m/min
Sub Spindle Max. manu. dia.     Ø42
Sub spindle max. rpm     6000 rpm
Sub spindle servo motor     5.5/7.5kw
Coolant pump      3/4 HP
Machine size(LxWxH)      2620 x 1270 x1700
Machine N.W.      3300 kgs
Coolant tank capacity      210 L



Video

Video

CDS 32 (Twin Spindle , Twin Platten - Gang Type )

Feature



  • Built for High Accuracy and High Production Operation
  • The CDS machine features a slant bed with an independent gang tool table for main and sub spindle. This saves tool changing time and shortens the cycle time.

Specifications

Specifications

Max. manu. dia.      Ø32
Spindle max. rpm      6000 rpm
X1-axis travel(vertical)      330
Z2-axis travel(cross)     240
Max. bar feeding dia.      Ø32
Collet of spindle      TRB-32
X rapid travel speed      30 m/min
Z rapid travel speed      30 m/min
Sub Spindle Max. manu. dia.     Ø32
Sub spindle max. rpm     6000 rpm
Sub spindle servo motor     5.5/7.5kw
Coolant pump      3/4 HP
Machine size(LxWxH)      2620 x 1270 x1700
Machine N.W.      3300 kgs
Coolant tank capacity      210 L



Video

Video

CDS 52

Feature:

Built for High Accuracy and High Production Operation
The CDS machine features a slant bed with an independent gang tool table for main and sub spindle. This saves tool changing time and shortens the cycle time.


Specifications

Specifications

X1,X2-axis travel(vertical)     330mm
Z1,Z2-axis travel(cross)      240mm
X-axis servo motor      1.0 kw
Z-axis servo motor      1.0 kw
X rapid travel speed      30 m/min
Z rapid travel speed      30 m/min
Min. input unit      0.001
Spindle
Max. bar feeding dia.       Ø51
Max. manu. dia.         Ø51
Center height      1070
Spindle max. rpm      6000 rpm
Spindle servo motor     7.5/11kw
Collet of spindle       TRB-52
Sub Spindle
Max. bar feeding dia.        Ø51
Max. manu. dia.        Ø51
Center height      1070mm
Sub spindle max. rpm      6000 rpm
Sub spindle servo motor     7.5/11kw
Coolant pump
Main/Sub spindle upper flush pump     3/4HP.
Tool coolant pump     3/4HP.
Machine
Power     220V/42KVA
Machine size(includes chip conveyor)(LxWxH)     3645x1273x1945
Machine N.W.     4500kg




Video

Video

CT 20 – with C Axis

Powerful, robust bar turning machine.

​Main advantages:

  • Highly rigid and stable cast iron frame
  • Modular tooling system
  • Powerful spindles and drives
  • Quick, easy configuration
  • Intuitive
  • ISO programming

Specifications

Specifications

Main spindle
Max bar diameter 20mm
Spindle speed 8000rpm
Spindle drive power 2,2kw
Max number of turning tools 6
Turning tool section 12x12
Max drilling diameter Ø 10mm (ER 16)
Max tapping diameter M8 (ER16)
Max radial drilling diameter Ø7
Max. number of front tools 5
Cross-rotating tools 4 max.
Cross-rotating tool speed 8000rpm
Cross drive power 1kw
Counterspindle
Max bar diameter 20mm
Max parts length 80mm
Ejector stroke 80mm
Spindle speed 8000rpm
Spindle drive power 1,5kw
C-axis yes


Video

Video

Swiss ST 26

The high-performance swiss type lathe.

Main advantages

  • The most powerful motors in its category
  • Option to work with or without guide bush
  • Modular tool systems ensure excellent flexibility

Specifications

Specifications

Main Spindle (headstock) (Z1 / S1 / C1)
Maximum bar capacity 23mm
Standard part length with a rotating guide bushing 220mm
Max. rpm of the spindle 10000rpm
Spindle output  9,5kw
Max constant torque Nm 17
Drilling capacitity in free machining steel  10mm
Tapping capacity in free machining steel M10
Tool platen (X1 /Y1 / S2) (X2 /Y2)
Number of tool positions in main operations 18
Number of positions for rotating tools 8
Max rpm of the rotating tools 6000rpm
Output of the rotating tools 0.75kw
Drilling capacitity in free machining steel 8mm
Tapping capacity in free machining steel M6
Counter spindle (X4 / Z4 / S4 / C4)
Maximum bar capacity 23mm
Max. rpm of the spindle 0 - 10 000 t/min

Video

Video

Swiss Nano

  • The highest precision on the market
  • Unique kinematics enabling turning, drilling, cutting/deburring and roughing/finishing operations
  • Excellent accessibility for easy setting operations
  • Horological standard precision
  • Fixed/rotating guide bush or operation without guide bush
  • Minimal footprint: 1.1m in front of the machine with bar feeder and width 0.65m

Specifications

Specifications

Maximum diameter 4mm
Number of linear axes 6
Number of C axes 2
Number of independent tool systems 2
Total number of tool positions 12
Position for rotating tools 2

Video

Video

Swiss GT series

  • Ergonomic and modular
  • Operation with or without guide bush
  • B axis (option)
  • Modular tooling system on rear platten
  • Attractive price
  • Simple to set/adjust
  • Quality and precision

Specifications

Specifications

Maximum diameter 25.4mm
Number of linear axes 6
Number of C axes 2
Number of independant tool systems 2
Total number of tool positions 40
Position for rotating tools 14


Video

Video
